PONEX - Experimental Design

Hangar Ground-based Site:

ECCC upper air site conducts 2x daily radiosonde launches & surface met obs:

Additional sonde launches during research flights

ECCC instrument suite for 24/7 automated obs provide:

Cal/val of Convair instruments
Fill gaps in observing capabilities (e.g., water vapour profiling)
Boundary layer & thermodynamic profiling observations
Surface meteorology and hydrometeor classification

University instruments:

AERI would complement FIRR-2, WV, trace gas profiling
UQAM Doppler lidar (winds, aerosols) at Trail Valley?
Additional instruments TBD

Trail Valley Creek site located North of Inuvik:

Suite of precipitation, meteorological, and radiation instruments (in-situ and remote sensing)

Instrumentation:

Instrument	Geophysical Variable	Processing Performed
Pluvio2	Snow/rain rate	ECCC: on-site, real-time
Parsivel	Snow/rain rate, hydrometeor classification	ECCC: on-site, real-time
FD71P	Snow/rain rate, hydrometeor classification, visibility	ECCC: on-site, real-time
WXT520	Surface met (P, T, RH, winds, precip rate)	ECCC: on-site, real-time
MRR	Rain rate	ECCC: on-site, real-time
Doppler lidar	Vertical wind profile Cloud base height PBL height Aerosol backscatter profile	ECCC: on-site, real-time
DIAL (WV) lidar	Vertical water vapour profile Cloud base height Aerosol backscatter profile	ECCC: on-site, real-time by Vaisala software
MP3000 radiometer	Vertical thermodynamic profiling (WV, T)	ECCC: on-site, real-time by Radiometrics software
Mobile AERI (?)	Downwelling IR radiation	McGill U

Ground-based Sites:

Inuvik Hangar

Inuvik Hangar

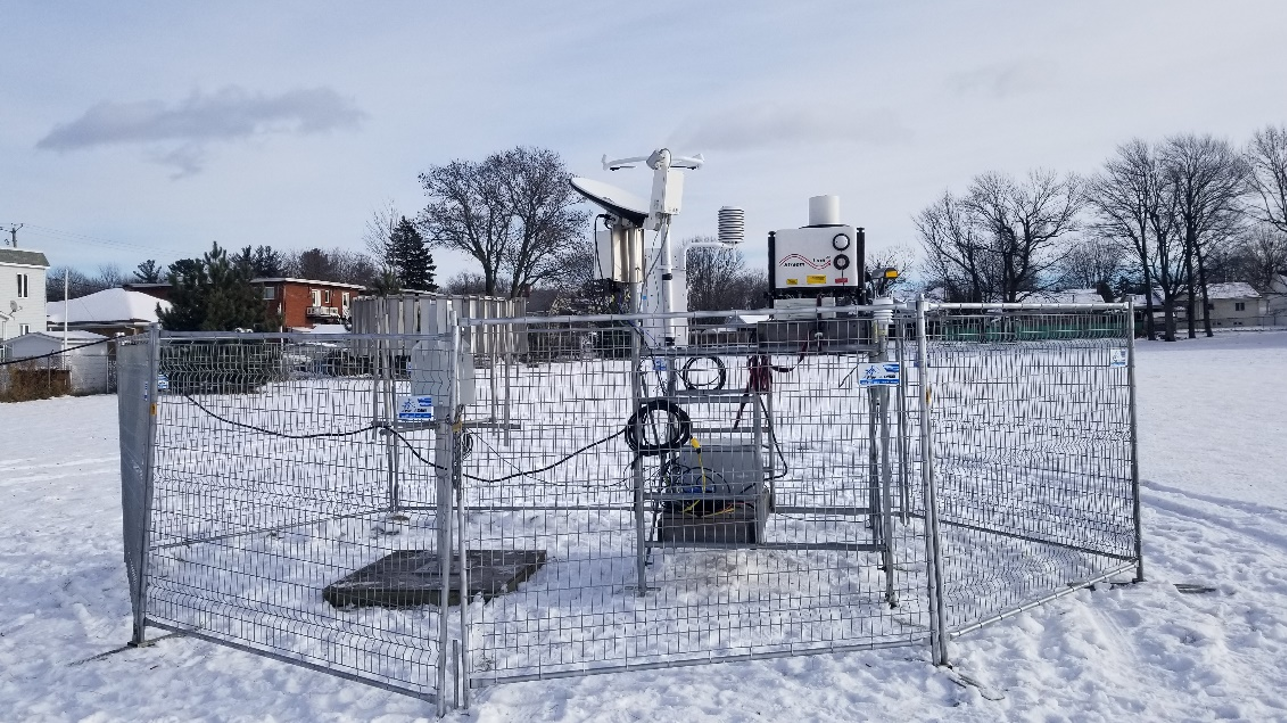

ECCC instrument suite during WINTER-MIX campaign, Sorel QC, 2022

WinterMix

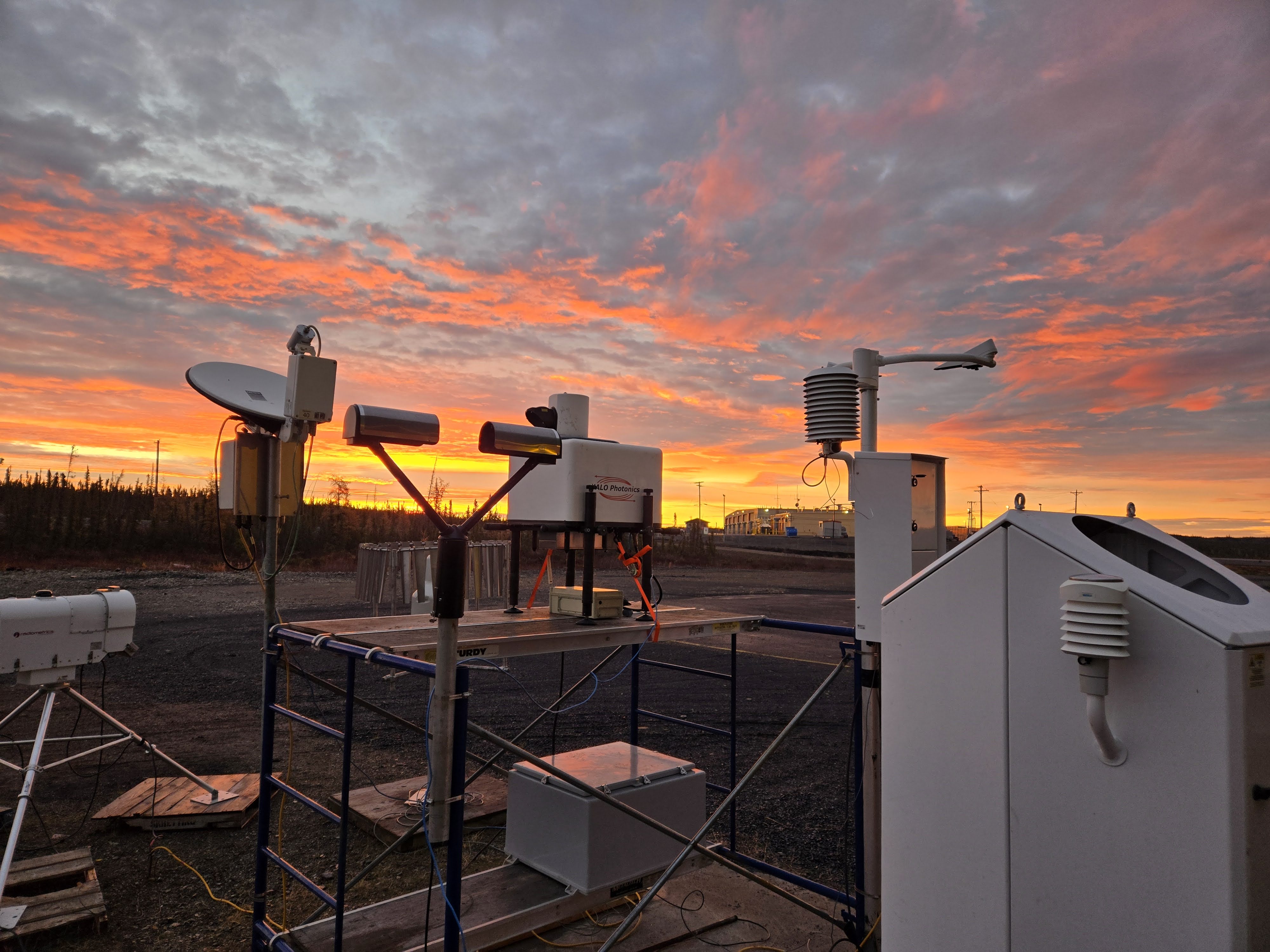

Inuvik Airport (Hangar sites)

Inuvik Airport

Trail Valley Creek Site

Valley Creek
